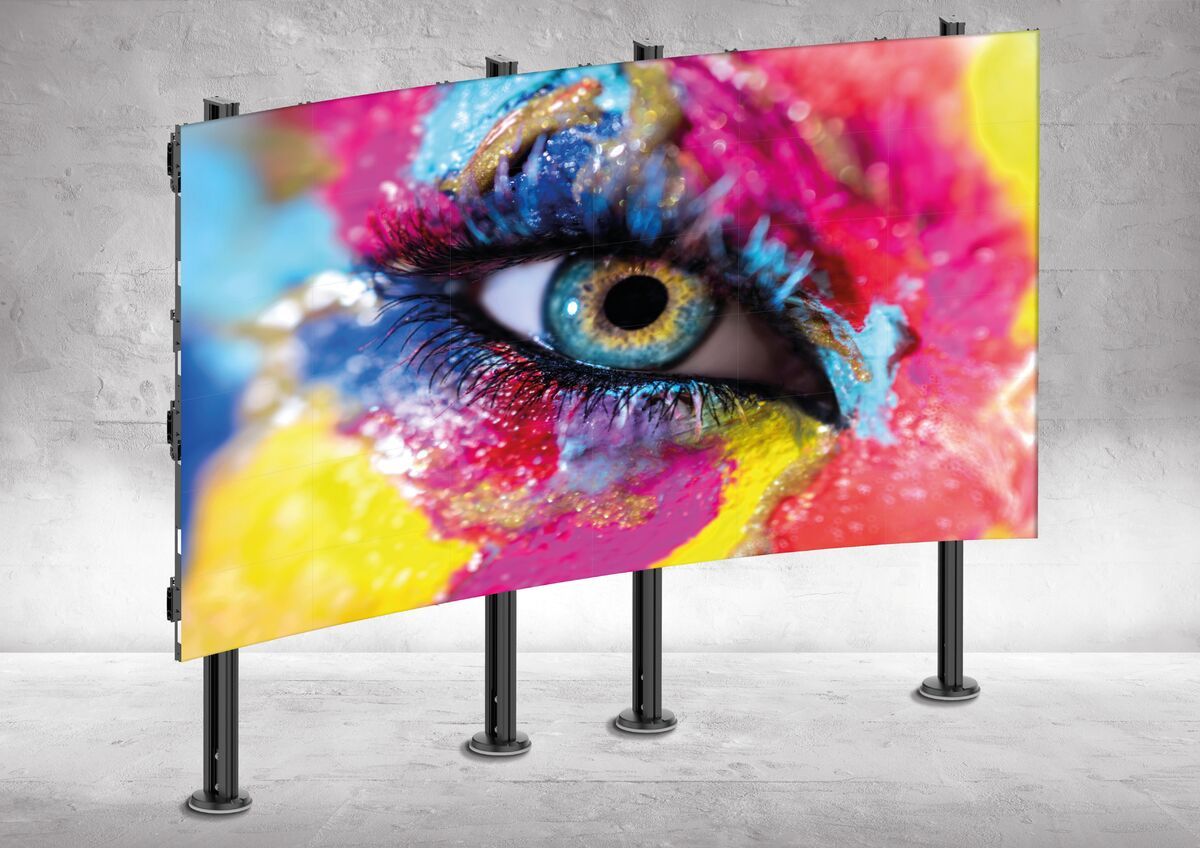

Barco TruePix Curved Solution

As preferred AV mounting supplier for Barco, Vogel's developed a dedicated curved solution. Modular Barco TruePix interfaces
PLI 8606: TruePix dvLED interface for two cabinets above eachother.
PLI 8607: TruePix dvLED interface for three cabinets above eachother
PLI 8608: TruePix dvLED interface for four cabinets above eachother.
The interfaces are provided with a coupler so you can create any configuration.

Easy Install
The PLA 8611 is a floorplate spacer to make sure that the PFF 7965 floorplates are positioned correctly on the floor in the preferred curve. With this spacer it is possible to create a curve of 0 up to 5 degrees (curve between two cabinets) in steps of 0,5 degrees.
The PLA 8609, is an interface bar which has the exact required length to mount a TruePix cabinet in a curved position. These are coupled with the universal curved coupler (PLA 8610).
PLA 8613: TruePix Connect-It spacer. This tool is used to determine on what height the PLA 8609 interface bars should be installed.
Using the floor plate spacer and PLA 8613 spacer will speed up the installation and can be re-used in every project!

6x6 Curved example The dimension image and product datasheet show a 6x6 floor mounted curved installation. Contact us for any project/inquiry/configuration
