PFW 6900 Display Wall Mount

  • Easy levelling and installation
  • For the heaviest displays
  • Self-centering display bolts

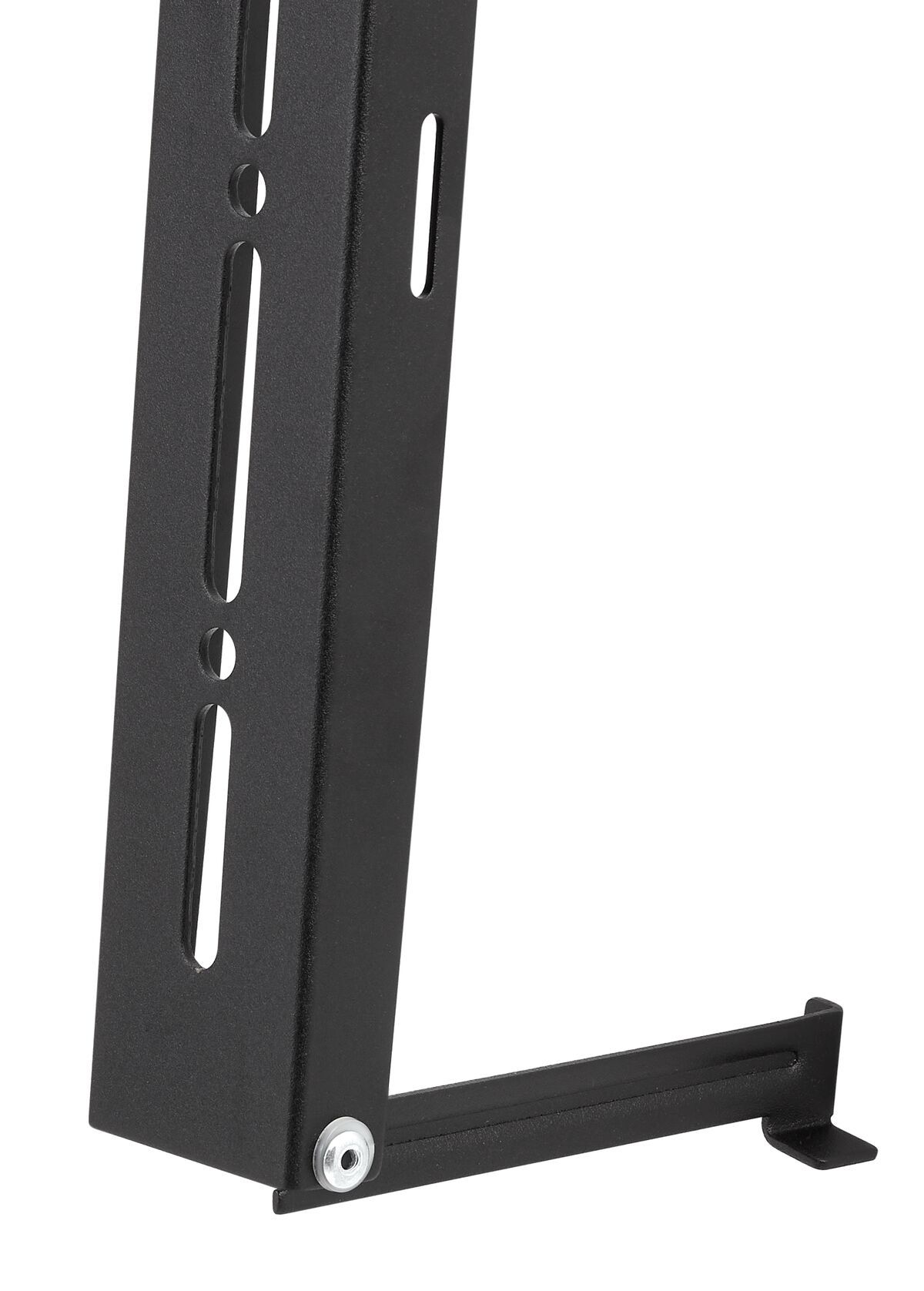

  • Locked service position

Extra-flat display wall mount for large displays

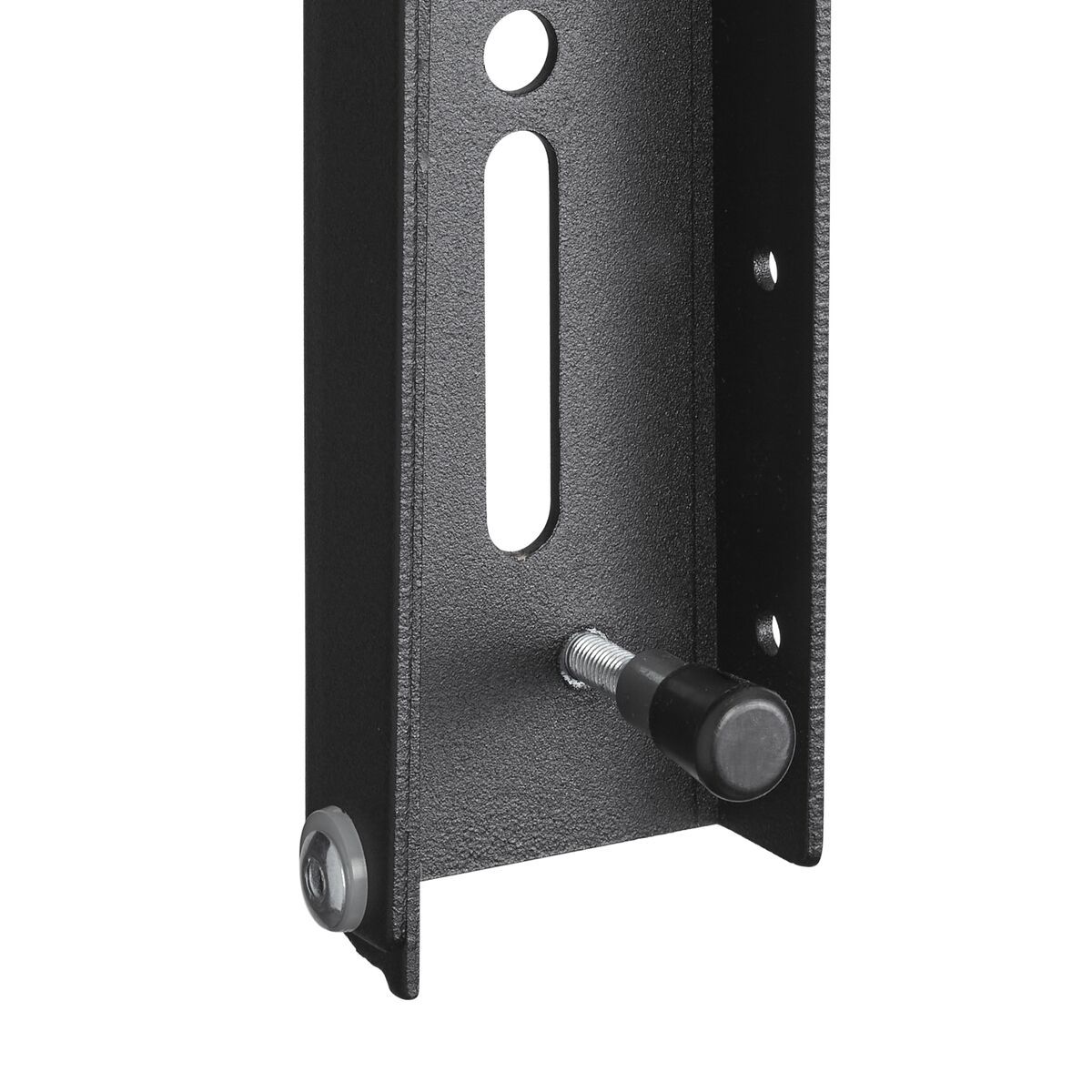

The PFW 6900 is a robust and elegant wall mount for displays from 80 to 120 inches, weighing up to 160 kg. The wall mount has a depth of only 42 mm. The integrated touch-screen stabiliser ensures that even the largest touch screens can be mounted perfectly vertical and stable on the wall.

Safe solid solution
Looking for a solid, secure way to mount your display flat against a wall? The PFW 6900 fixed wall mount is a reliable and simple solution with guaranteed Vogel's quality. The PFW 6900 is part of the 6000 series. Everything we know about quality and ease of installation has been applied to this product. This includes easy display levelling after installation, self-centering screws and easy access for service and maintenance. As you would expect from Vogel's, the PFW 6900 is TÜV-5 certified.

PFW 6900 Display Wall Mount

Videos

Product video

Awards and certificates

This product passed extensive tests to guarantee compliance with the TÜV Nord quality standard. Products are tested to carry at least 3 times the indicated weight for domestic related products and at least 5 times for professional products without collapsing. TÜV NORD is an independent certification authority and recognized globally as the label of excellent quality.

Fischer inside

Fischer plugs inside

Specifications For PFW 6900 Display Wall Mount

EAN single box
8712285352645
Series
PFW 6000 Series
Product group
Display mount fixed
Guarantee
5 years
TÜV certified
Yes
Colour
Black
Min. screen size (inch)
80
Max. screen size (inch)
120
Max. weight load (kg)
160
Max. weight load (lbs)
352.74
Orientation
Landscape
Hole pattern (VESA)
  • 400 mm x 400 mm
  • 600 mm x 400 mm
  • 600 mm x 600 mm
  • 800 mm x 400 mm
  • 800 mm x 600 mm
  • 850 mm x 400 mm
  • 1000 mm x 600 mm
  • 1200 mm x 800 mm
Lock options
No lock
Levelling function
Post-installation horizontal levelling
Fischer inside
Yes
Service position
Yes
Min. horizontal hole pattern (mm)
400
Max. horizontal hole pattern (mm)
1200
Min. vertical hole pattern (mm)
400
Max. vertical hole pattern (mm)
800
Min. distance to the wall (mm)
42
Min. distance to the wall (inch)
1.65
