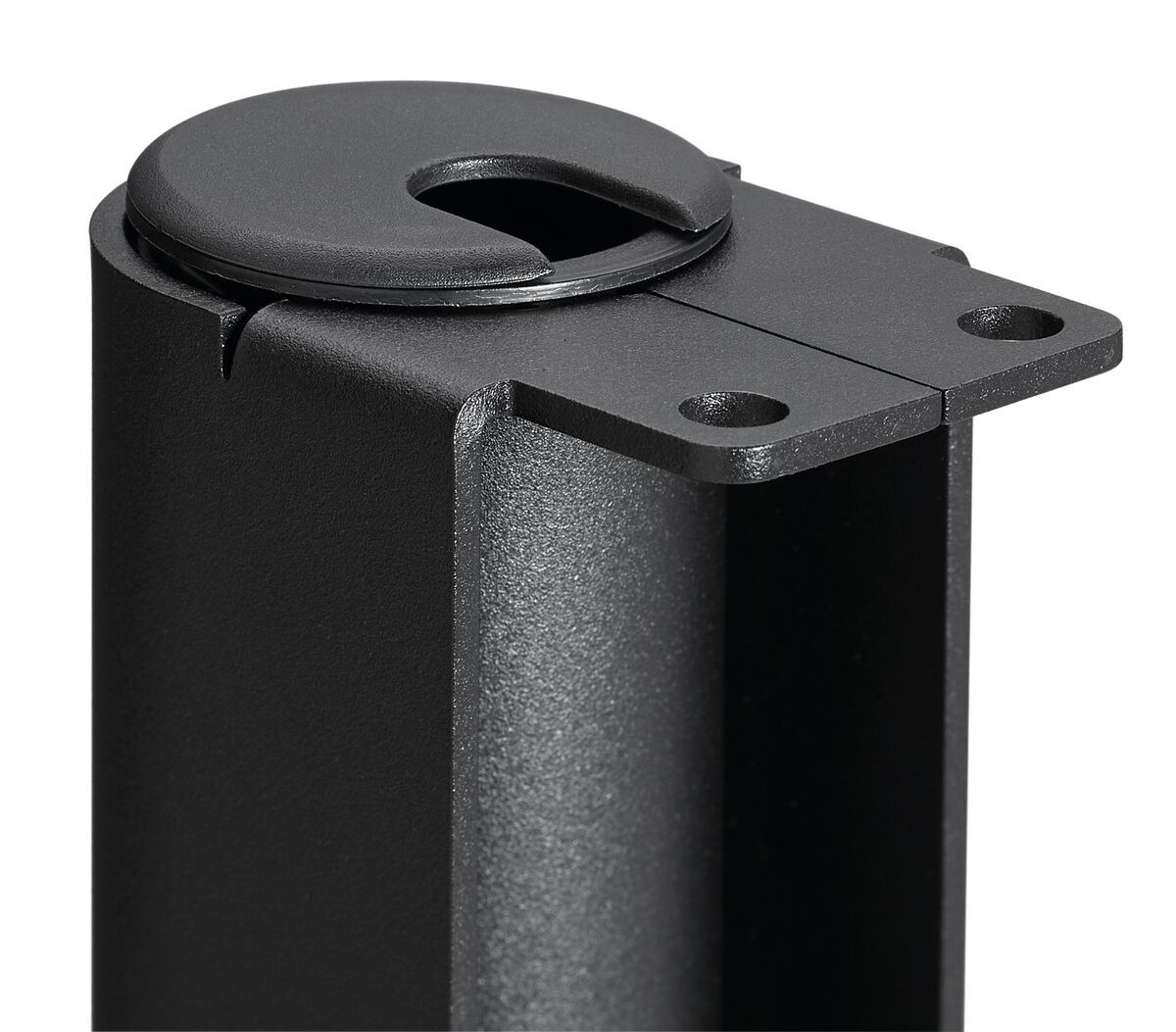

PFA 9148 Turn Unit

  • Easy install
  • Modular
  • Cable management

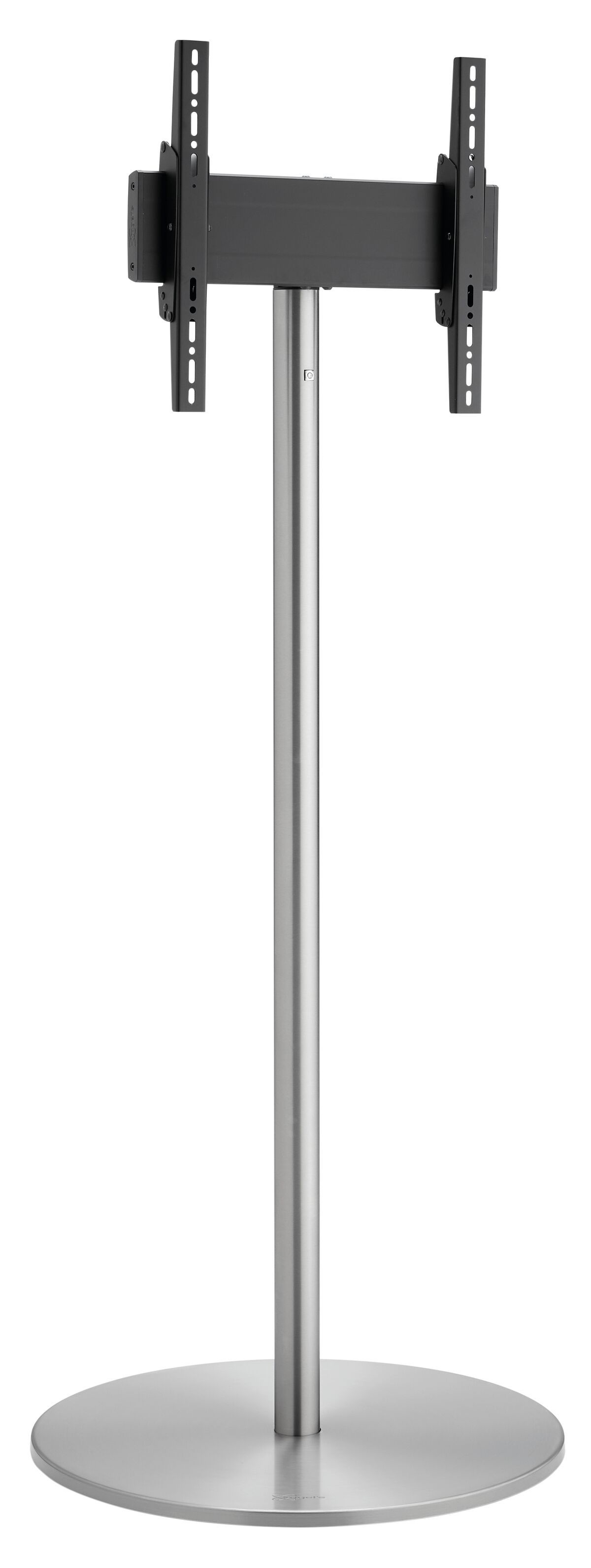

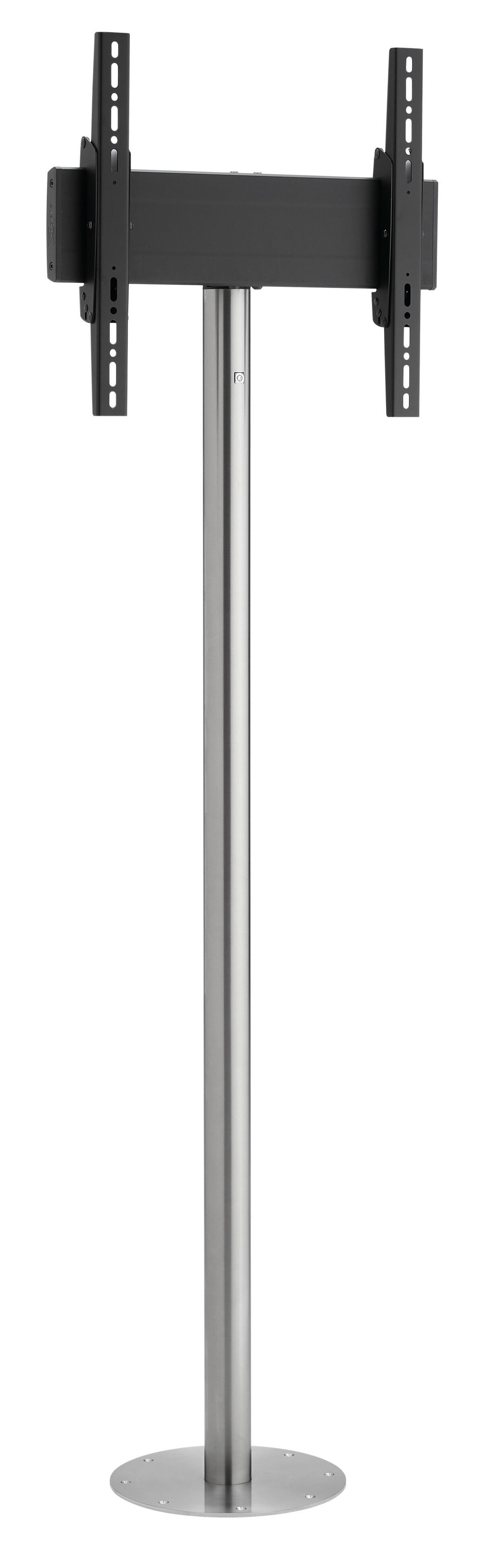

The PFA 9148 turn unit can be used to mount a display to the PFF 1560 display floor stand or the PFA 9155 display floor-mounting stand. The turn unit is part of a modular system that allows you to create your own floor-mounting solution for displays up to 40 kg. You will need to add a display interface bar (PFB 34xx), depending on the display.

PFA 9148 Turn Unit

Awards and certificates

This product passed extensive tests to guarantee compliance with the TÜV Nord quality standard. Products are tested to carry at least 3 times the indicated weight for domestic related products and at least 5 times for professional products without collapsing. TÜV NORD is an independent certification authority and recognized globally as the label of excellent quality.

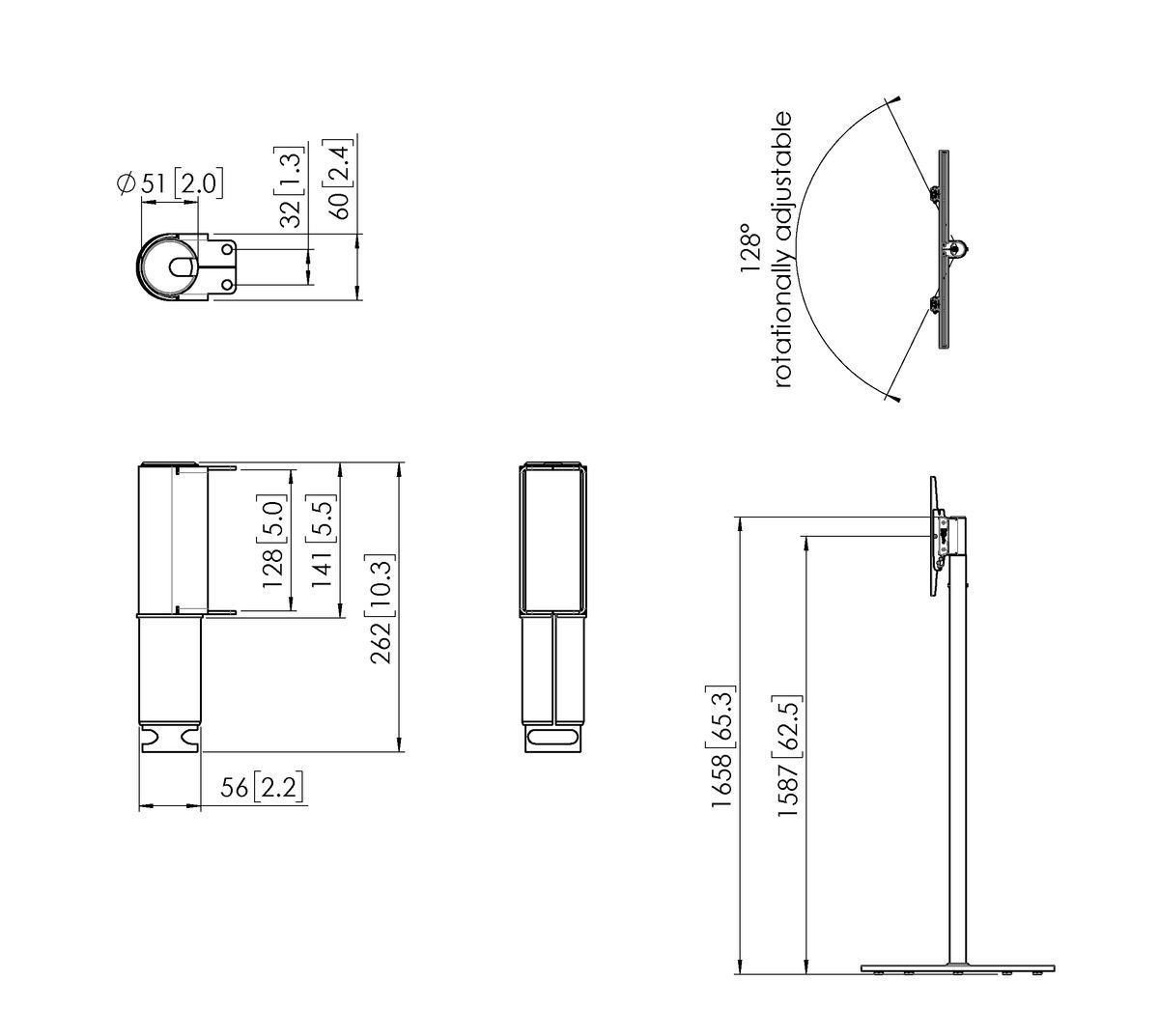

Specifications For PFA 9148 Turn Unit

Product group
Accessory
Series
Connect-it
EAN single box
8712285345241
Guarantee
5 years
TÜV certified
Yes
Colour
Black
Height (mm)
262
Width (mm)
60
Depth (mm)
51
Turn
Up to 128°
Max. weight load (kg)
40
Max. weight load (lbs)
88.18
